DLP Intelligent Projector

Portable MINI DLP Real 3D Projector 4K 5G WIFI Smart Android/Iphone Home Theater Beamer Full HD 1080P Video lAsEr Proyector(T5)


1.  High Resolution, High Brightness : DLP DMD WXGA 854*480 Native resolution, 600ansi(about 2500lumens), support 1080P 4K USB mode

2.  Electric Motor Focus: No need manual rotate focus wheel, just press Focus keys on remote control, inside motor working for focus picture quality

3.  Digital Zoom Function: 99% projector need move distance for change picture size, our this T5 projector Zoom data from 0-100 , no need move projector distance, change picture size from small to Bigger.

4.  Automatic Keystone +- 40 Degree : T5 projector with automatic keystone function +- 40 degree. put anywhere for get correct watching picture 5.  T5 projector with Off-axis Technology: Projector Horizontal place can project up to 30 degrees, projectors without off-axis technology are placed on the table, Half of the picture is under the table.

6.  Full 3D ,DLP active shutter 3D : Support Left-Right / Top-Bottom / FramePacking / Anaglyph 3D

7.  Android 6.0 OS , 2.4G & 5G wifi  Bluetooth: smart Android wifi projector with 1G RAM 16G ROM , 5G Speed wifi. Bluetooth function.

8.  Strong GPU CPU Support decode 4K AC3: 64 bits CPU Quad-core Contex GPU Mali-720 H.265 4K Decode

9.  Miracast Airplay Eshare mirroring : T5 projector support Synchronous display, Mirroring , stream share from android phone, IOS phone, laptop , Tablet.

10. Build-in Battery Portable Size:18.5 x 10.5 x 2.2 CM easy carry everywhere for big screen projection enjoyment, Battery last for 2.0-2.5hours playback.

  • Item Product Characteristic Product parameters
    OPTICS Projection technology America DLP technology
    Display Chip TI 0.2 inch WVGA DMD*RGBLED (With Off-axis Ray Machine)>100%
    Brightness 2000 lumen /150ANSI
    Lamp OSRAM LED Lamps
    Uniformity >90%
    FOFO Contrast Ratio 1000:1
    Standard Resolution WVGA 854*480
    3D Support 3D function(DLP-LINK)
    PROJECTION Throw Ratio 1 meter: 39 inches
    Throw Range 30-300 inches
    Throw Distance 1-6Meter(s)
    Aspect Ratio 4:3/16:9/16:10
    Keystone Correction Supports automatic and manual
    Projection Methods Front Projection,Rear Projection,Hanging cast
    Texture of material Plastic ABS+ electroplating + metal
    Focus mode Electric motor focusing
    Built-in loudspeaker 8 Ω 2W*2
    Sound effects Support Dolby sound effect
    SYSTEM PARAMETERS CPU MStar6A638 Decode 4K H.265/VP9 4K*2K/30HZ
    Clock Speed 64 bits CPU: Contex A53 Two nuclei GPU: Mali-450mp4
    Cache 2G DDR3
    RAM 16GB eMMC
    Operating System Android 6.0
    Bluetooth BT 4.0 (Support external bluetooth Speaker, mouse and gamepad)
    WIFI 2.4G / 5.0G dual-band WIFI
    Remote Control Infrared remote control and support connect the 2.4g wireless remote control and the mouse
    Power input parameters 12V-3A DC

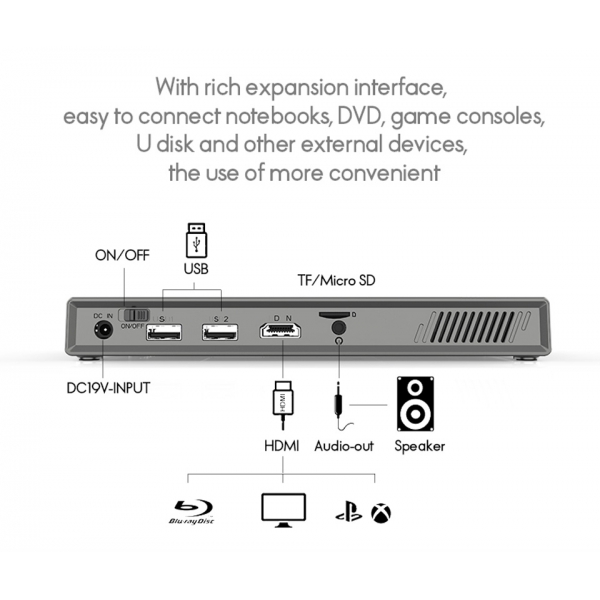

    Input support USB ,IR
    OUTPUT INTERFACE Extended Memory Support TF card and SSD Hard Dish
    USB USB HOST 2.0*1  USB HOST 2.0*1
    TF Card Maximum supported 32G
    HDMI Supports HDMI 1.4 input
    USB Able to read data from USB hard drive   support mouse  and keyboard access
    Headphone Output Audio output, 3.5mm connectors (can connect headphones or speakers)
    DC Input Power adapter:DC 12V 3A
    ELECTRICAL SPECIFICATIONS Total Power Consumption 25W
    Battery Capacity 7.4V 4000mAh
    Power Performance AC100-240V,50/60Hz    built-in battery
    OTHER PARAMETERS Product Size 180*90*22mm
    Package Size 200*122*103mm
    Net Weight 500g
    Package Weight(1set) 1.5Kg
    Package Weight(10sets/box) 16Kg
    Carton Size(10sets/box) 420*390*370mm
  • *
