| Item | Product Characteristic | Product parameters |
| OPTICS | Display Type | DLP |
| Display Chip | TI 0.3 inch WVGA DMD*RGBLED （With Off-axis Ray Machine） | |
| Projector Feature | Interactive | |
| Brightness | 100 ANSI Lumens | |
| Lamp | OSRAM LED Lamps | |
| Uniformity | >90% | |
| FOFO Contrast Ratio | 2000:1 | |
| Standard Resolution | WVGA 854*480 | |
| PROJECTION | Throw Ratio | 1.4：1 |
| Throw Range | 30-120 inches | |
| Throw Distance | 1-3 Meter(s) | |
| Aspect Ratio | 4：3/16：9/16：10 | |
| Keystone Correction | Focus | |
| Projection Methods | Front Projection back projection hang projection |
| SYSTEM PARAMETERS | CPU | RK3128 |
| Clock Speed | Quad-Core ARM Cortex-A7 CPU with up to 1.2GHz | |
| Cache | 1G DDR3 | |
| RAM | 8GB Emmc | |
| Operating System | Android 7.1 Customize | |
| Video Support | Real-Time Video Decoder for MPEG-1 MPEG-2 MPEG-4, H263,H264,H265,VC-1,RV 1080P VP8,Sorenson SparkWAV |
|
| Audio Support | MP3,WMA,MP2,0GG,AAC,M4A,MA4,FLAC,APE,3GP,WAV | |
| Photo Support | Supports variety of image formats browsing jpg png bmp etc | |
| FLASH Support | Supports flash 11.1 | |
| Extended Memory | TF card and SSD Hard Dish | |
| USB | USB HOST 2.0 | |
| TF Card | Maximum supported 32G | |
| HDMI | HDMI 1.4 in | |
| Bluetooth | BT 4.0 (Support external bluetooth Speaker, mouse and gamepad） | |
| WIFI | 2.4G/5G Dual-band WIFI | |
| Remote Control | Support IR and 2.4G wireless remote control | |
| Power Input Parameters | 5V-3A DC | |
| Input Support | USB ,IR | |

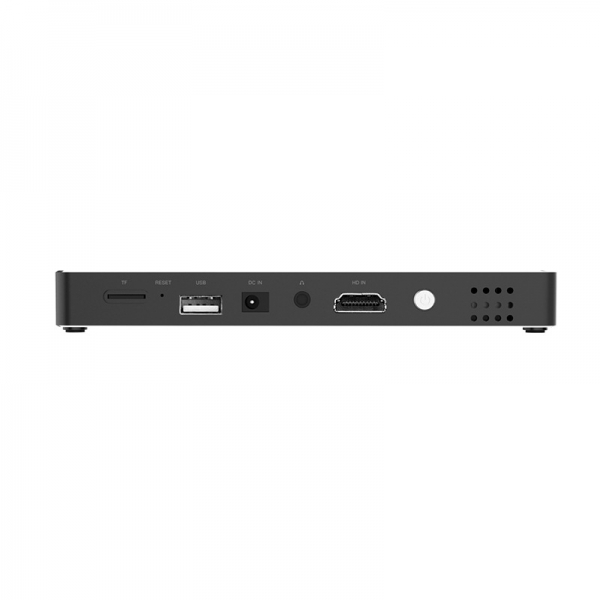

| INTERFACE | HDMI | support input |
| USB | Able to read data frim USB hard drive and support mouse access | |
| Headphone Output | Audio output, 3.5mm connectors (can connect headphones or speakers) | |
| 5V DC Input | Power Adapter：DC 5V 3A | |
| ELECTRICAL SPECIFICATIONS | Total Power Consumption | 10W |
| Power Performance | AC100-240V,50/60Hz | |
| Battery Inside | 4200mAh | |
| OTHER PARAMETERS | Product Size | 158*80*18mm |
| Package Size | 190*130*65mm | |
| Net Weight | 285g | |
| Package Weight(1set) | 775g | |
| Package Weight (24set/box) |
19.5kg | |
| Carton Size(10set/box) | 420*397*300mm |
